Coil Tube
NPS:
Welded Tube outside Diameter 1/8" thru 1 3/4"
Seamless Tube outside Diameter 1/16" thru 1 3/4"
Wall Thickness: 0.5mm - 4mm
End: Plain End (PE)
Type: Seamless/ Welded
Standard: ASME B36.19, ASME B36.10, (Customization Available)
Surface Finishing: Pickling, blasting, bright annealed, mill finish, polish finish 120#, 180#, 240#, 300#, 600# etc.
Material Range:
Stainless Steel: ASTM A213, A269, A249, A632 304/304L/304H, 310S, 316/316L, 317L, 321/321H, 347/347H etc.
Duplex Steel: ASTM A789, A790 S31803, S32205, S31500, S32550, S32750, S32760, S32950, etc.
Special Nickel Alloy Steel: ASTM B704, Inconel 600/625/800/825, Monel 400/K-500, Incoloy 800H/800HT, Hastelloy B2/C22/C276, 254SMO, 253MA, etc.
Package: PP wrapped/ bundled/ wooden box

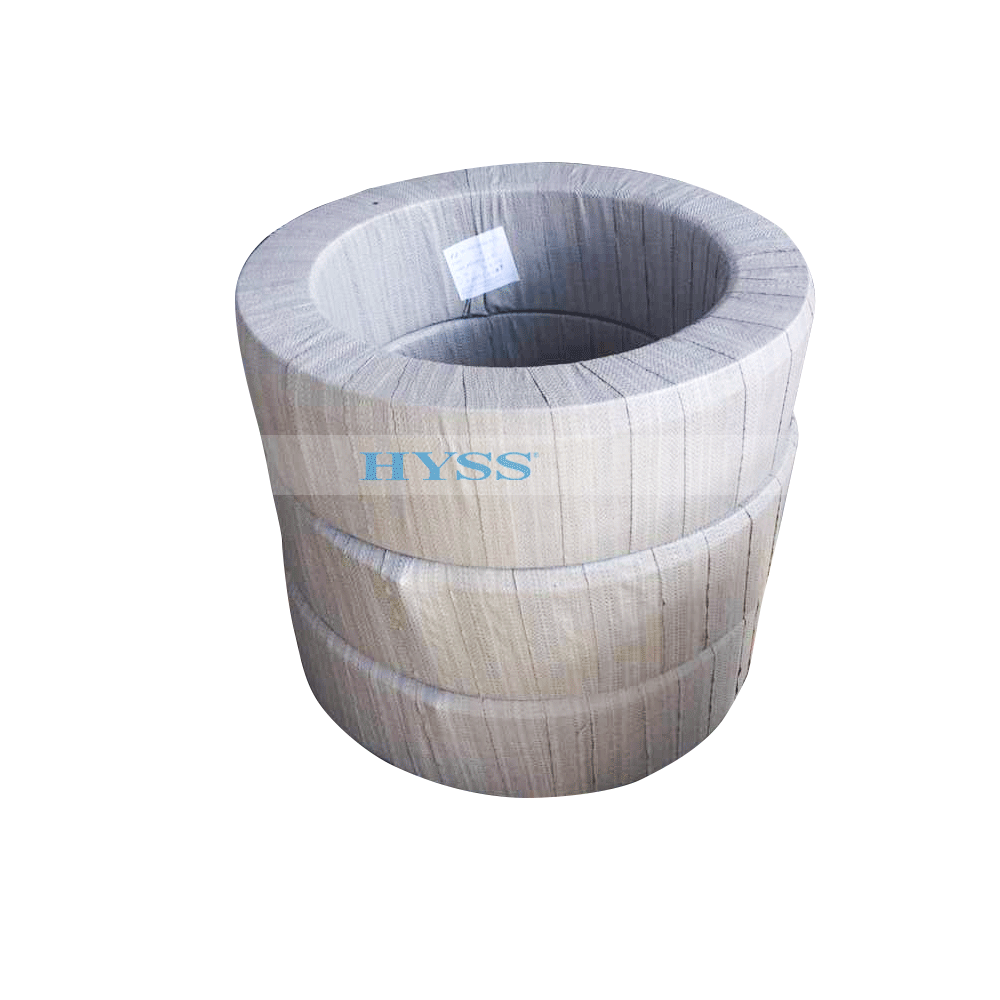

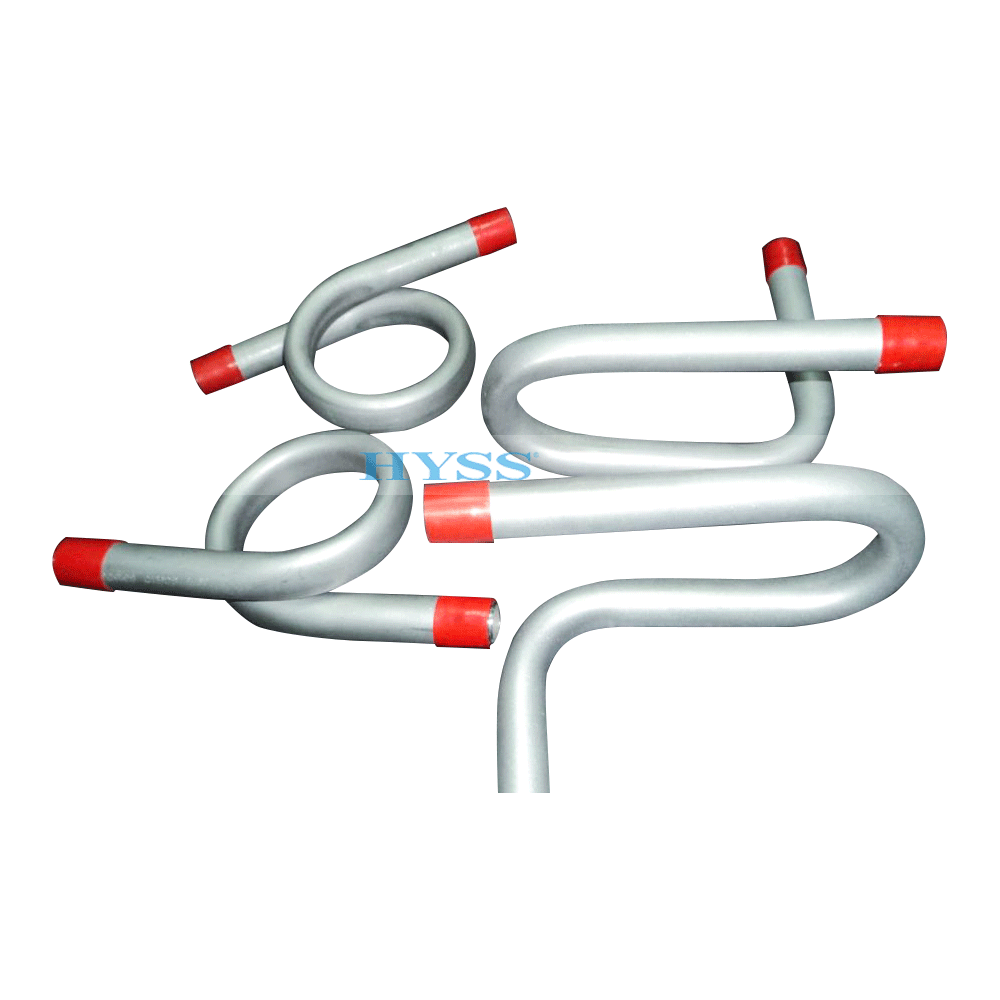

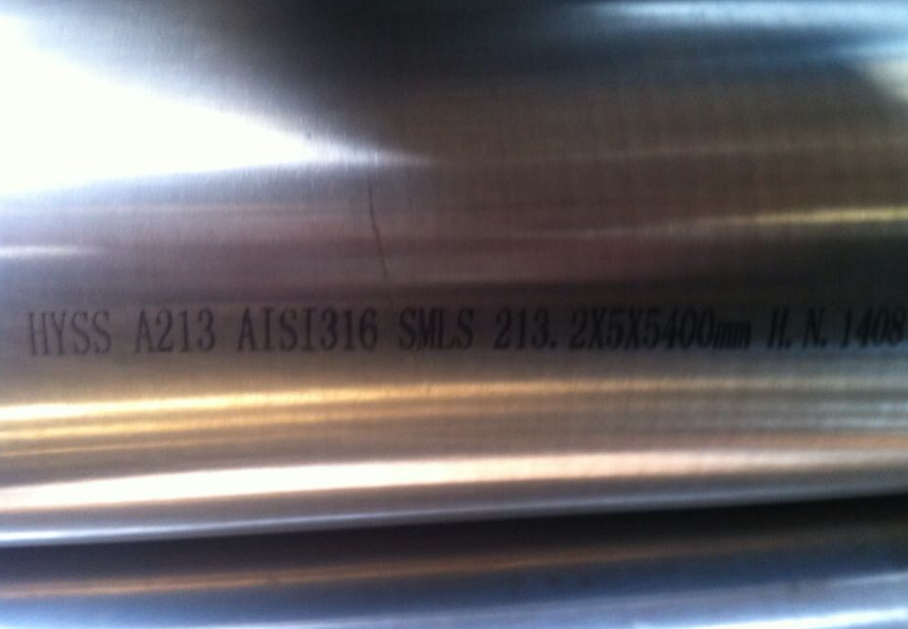

Pictures:
Dimensions as below:
| Norminal Pipe Size | Outside Diameter | Wall Thickness (mm) | ||||
| NPS | OD(mm) | 0.02" | 0.028" | 0.035" | 0.049" | 0.065" |
| 1/16" | 1.588 | 0.5 | - | - | - | - |
| 1/8" | 3.18 | 0.5 | 0.71 | 0.89 | - | - |
| 1/4" | 6.35 | 0.5 | 0.71 | 0.89 | 1.24 | 1.65 |
| 3/8" | 9.53 | - | - | 0.89 | 1.24 | 1.65 |
| 1/2" | 12.7 | - | - | 0.89 | 1.24 | 1.65 |
| 5/8" | 15.88 | - | - | 0.89 | 1.24 | 1.65 |
| 3/4" | 19.05 | - | - | 0.89 | 1.24 | 1.65 |
| 1" | 25.4 | - | - | 0.89 | 1.24 | 1.65 |
| 1 1/4" | 31.75 | - | - | - | 1.24 | 1.65 |
| 1 1/2" | 38.1 | - | - | - | 1.24 | 1.65 |
| 1 3/4" | 44.45 | - | - | - | 1.24 | 1.65 |
| Norminal Pipe Size | Outside Diameter | Wall Thickness (mm) | ||||
| NPS | OD(mm) | 0.083" | 0.095" | 0.109" | 0.125" | 0.165" |
| 1/16" | 1.588 | - | - | - | - | - |
| 1/8" | 3.18 | - | - | - | - | - |
| 1/4" | 6.35 | - | - | - | - | - |
| 3/8" | 9.53 | - | - | - | - | - |
| 1/2" | 12.7 | 2.11 | - | - | - | - |
| 5/8" | 15.88 | 2.11 | 2.41 | - | - | - |
| 3/4" | 19.05 | 2.11 | 2.41 | 2.77 | - | - |
| 1" | 25.4 | 2.11 | 2.41 | 2.77 | 3.18 | 4.2 |
| 1 1/4" | 31.75 | 2.11 | 2.41 | 2.77 | 3.18 | 4.2 |
| 1 1/2" | 38.1 | 2.11 | 2.41 | 2.77 | 3.18 | 4.2 |
| 1 3/4" | 44.45 | 2.11 | 2.41 | 2.77 | 3.18 | 4.2 |
lengthweightmmkg
