ANSI B 16.36 Orifice Flanges


Wide range of raw-materials for flanges



Alloy Steel:   ASTM A182 F11 1 1/4% Cr 1/2% Mo F5 F9 F91

ASTM A182 F22 2 1/4% Cr 1% Mo F92 F911

ASTM A350 LF2 LF3 LF6

etc...

Carbon Steel:  ASTM A 105 A105N

etc...

Stainless Steel:  ASTM A182 F316 F316L F317 F321

ASTM A l 82 F304 F310 F904L F317L F347H

etc...

Duplex Steel:    ASTM A182 F51 F53 F54 F55 F57

etc...

• Ratings from 300 lb to 2500 lb

• Sizes from 1" Nominal Bore

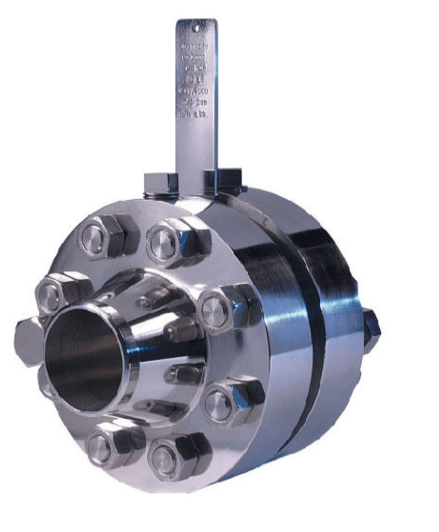

Orifice flanges are intended for use instead of standard pipe flanges

When an orifice plate or flow nozzle must be installed.

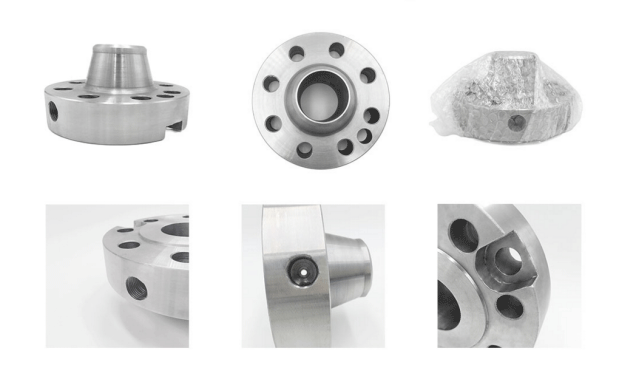

Sure tappings are machined into the orifice flange, making separate

Orifice carriers or tappings in the pipe wall is unnecessary.
