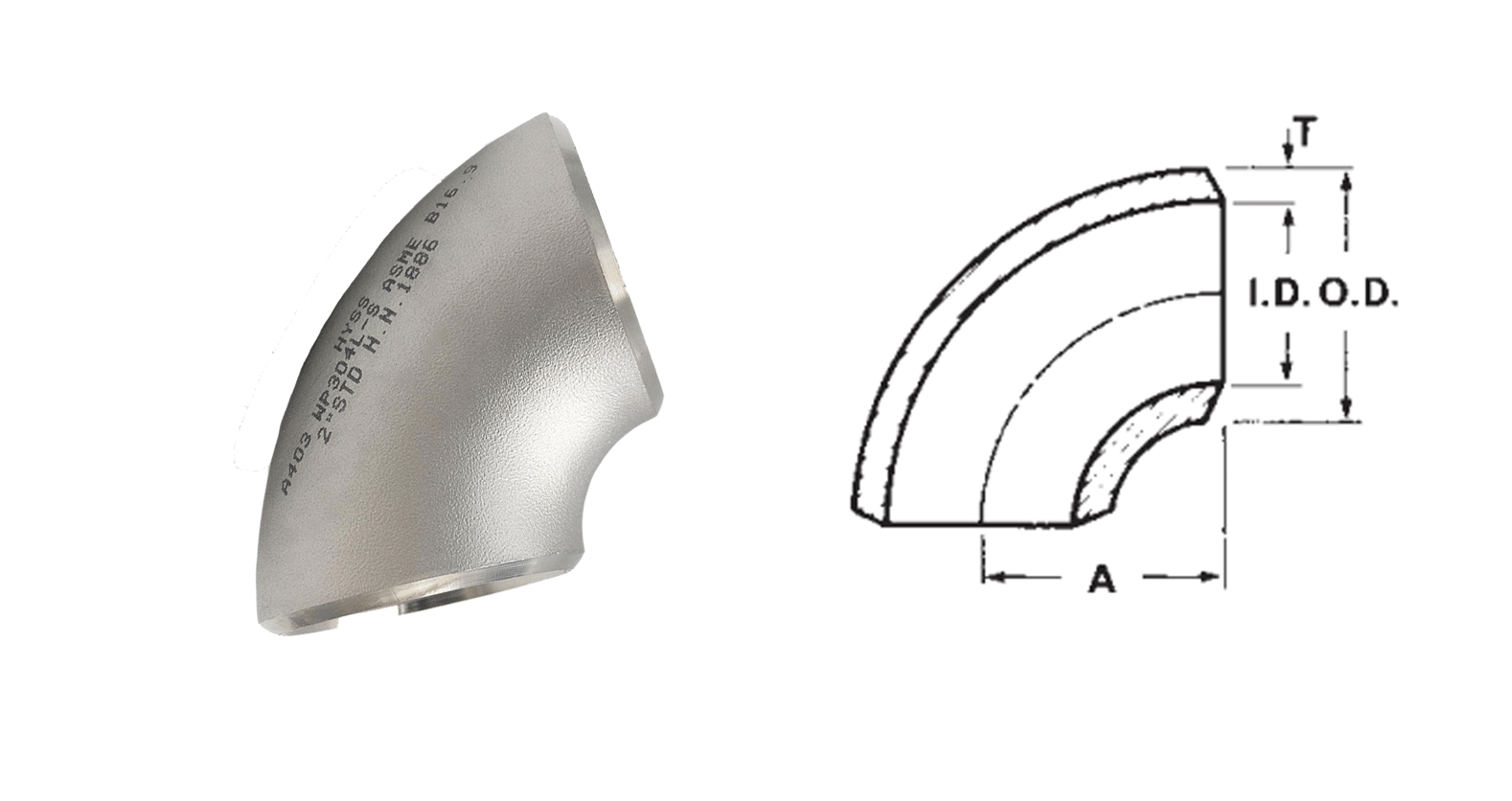

90° ELBOWS SHORT RADIUS
Standard Weight, Extra Strong, and Double Extra Strong Carbon and ferritic alloy steel, carbon , stainless, duplex and alloy steel, duplex and alloy steel, ASTM A-234, ASME/ANSI B16.28,ASTM A-234,A403, A420,A815,ASME/ANSI B16.28, B16.9.
Outside Diameter at Bevel O.D.(mm) | Centre to End Nominal A (mm) | STANDARD WEIGHT | EXTRA STRONG | ||||||
| NPS | Inside Diameter l.D. (mm) | Wall Thickness T (mm) | Approx. Weight (kg) | Inside Diameter l.D.(mm) | Wall Thickness T (mm) | Approx. Weight (kg) | |||
| DN | |||||||||
| 1 | 25 | 33 | 25 | 26.64 | 3.38 | .11 | . | - | - |
| 1 1/4 | 32 | 42 | 32 | 35.05 | 3.56 | .17 | - | - | - |
| 1 1/2 | 40 | 48 | 38 | 40.89 | 3.68 | .23 | 38.10 | 5.08 | .34 |
| 2 | 50 | 60 | 51 | 52.50 | 3.91 | .40 | 49.25 | 5.54 | .68 |
| 2 1/2 | 65 | 73 | 64 | 62.71 | 5.16 | .79 | 59.00 | 7.01 | 1.01 |
| 3 | 80 | 89 | 76 | 77.93 | 5.49 | 1.35 | 73.66 | 7.62 | 1.69 |
| 3 1/2 | 90 | 102 | 89 | 90.12 | 5.74 | 1.80 | 85.45 | 8.08 | 2.48 |
| 4 | 100 | 114 | 102 | 102.26 | 6.02 | 2.70 | 97.18 | 8.56 | 3.5 |
| 5 | 125 | 141 | 127 | 128.19 | 6.55 | 4.28 | 122.25 | 9.53 | 6.1 |
| 6 | 150 | 168 | 152 | 154.05 | 7.11 | 7 | 146.33 | 10.97 | 10.1 |
| 8 | 200 | 219 | 203 | 202.72 | 8.18 | 14 | 193.68 | 12.70 | 21 |
| 10 | 250 | 273 | 254 | 254.5 | 9.27 | 25 | 147.65 | 12.70 | 32 |
| 12 | 300 | 324 | 305 | 304.8 | 9.53 | 35 | 298.45 | 12.70 | 45 |
| 14 | 350 | 356 | 356 | 336.6 | 9.53 | 47 | 330.02 | 12.70 | 59 |
| 16 | 400 | 406 | 406 | 387.4 | 9.53 | 53 | 381.0 | 12.70 | 72 |
| 18 | 450 | 457 | 457 | 438.2 | 9.53 | 67 | 431.8 | 12.70 | 87 |
| 20 | 500 | 508 | 508 | 489.0 | 9.53 | 95 | 482.6 | 12.70 | 126 |
| 24 | 600 | 610 | 610 | 590.6 | 9.53 | 130 | 584.2 | 12.70 | 167 |
| (2)30 | (2)750 | 762 | 762 | 743.0 | 9.53 | 216 | 736.6 | 12.70 | 285 |
| (2)35 | (2)900 | 914 | 914 | 895.4 | 9.53 | 313 | 889.0 | 12.70 | 423 |
Outside Diameter at Bevel O.D.(mm) | Centre to End Nominal A (mm) | STANDARD WEIGHT | DOUBLE EXTRA STRONG | ||||||
| NPS | Inside Diameter l.D. (mm) | Wall Thickness T (mm) | Approx. Weight (kg) | Inside Diameter l.D. (mm) | Wall Thickness T (mm) | Approx. Weigh(kg) | |||
| DN | |||||||||
| 1 | 25 | 33 | 25 | 26.64 | 3.38 | .11 | - | . | - |
| 1 1/4 | 32 | 42 | 32 | 35.05 | 3.56 | .17 | - | - | - |
| 1 1/2 | 40 | 48 | 38 | 40.89 | 3.68 | .23 | 27.94 | 10.16 | .68 |
| 2 | 50 | 60 | 51 | 52.50 | 3.91 | .40 | 38.13 | 11.07 | 1.26 |
| 2 1/2 | 65 | 73 | 64 | 62.71 | 5.16 | .79 | 44.98 | 14.02 | 2.21 |
| 3 | 80 | 89 | 76 | 77.93 | 5.49 | 1.35 | 58.42 | 15.24 | 3.15 |
| 3 1/2 | 90 | 102 | 89 | 90.12 | 5.74 | 1.80 | 69.29 | 16.15 | 4.73 |
| 4 | 100 | 114 | 102 | 102.26 | 6.02 | 2.70 | 80.06 | 17.12 | 6.35 |
| 5 | 125 | 141 | 127 | 128.19 | 6.55 | 4.28 | 103.20 | 19.05 | 12 |
| 6 | 150 | 168 | 152 | 154.05 | 7.11 | 7 | 124.38 | 21.95 | 19.4 |
| 8 | 200 | 219 | 203 | 202.72 | 8.18 | 14 | 174.63 | 22.23 | 36 |
(1) NPS 3-1/2 (ON 90) XXS is not specified in ASME/ANSI B36.10.
(2) These sizes not covered in ASME/ANSI B16.28.
These fittings are also available in other sizes and/or wall thicknesses.
MILLIMETRES KILOGRAMS
90°elbow short radius Size range: 1/2''-48''
Materials include: stainless steel, carbon and alloy steel,duplex,supper duples. ASME/ANSI B16.28 ASTM A-234 ASME/ANSI B16.9 ASTM A403 A234 A420 ASTM A8 15 AWWA C208
