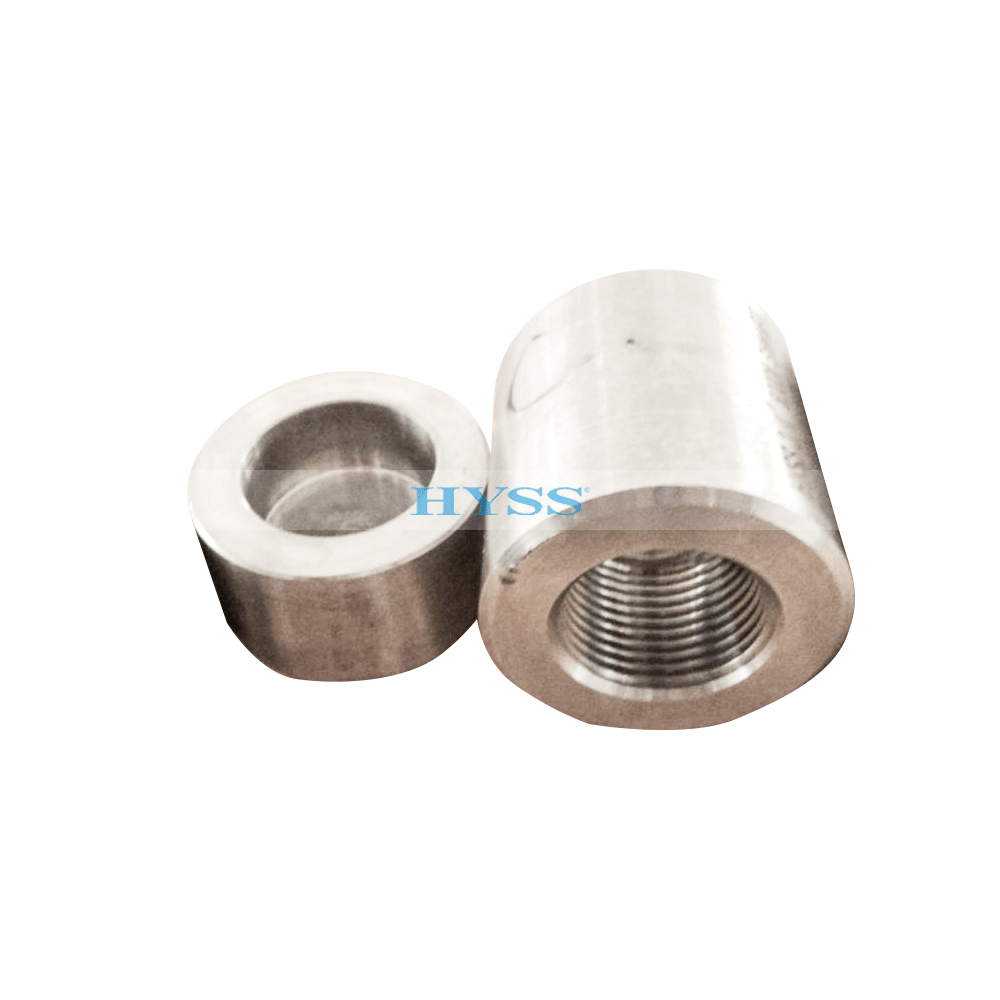

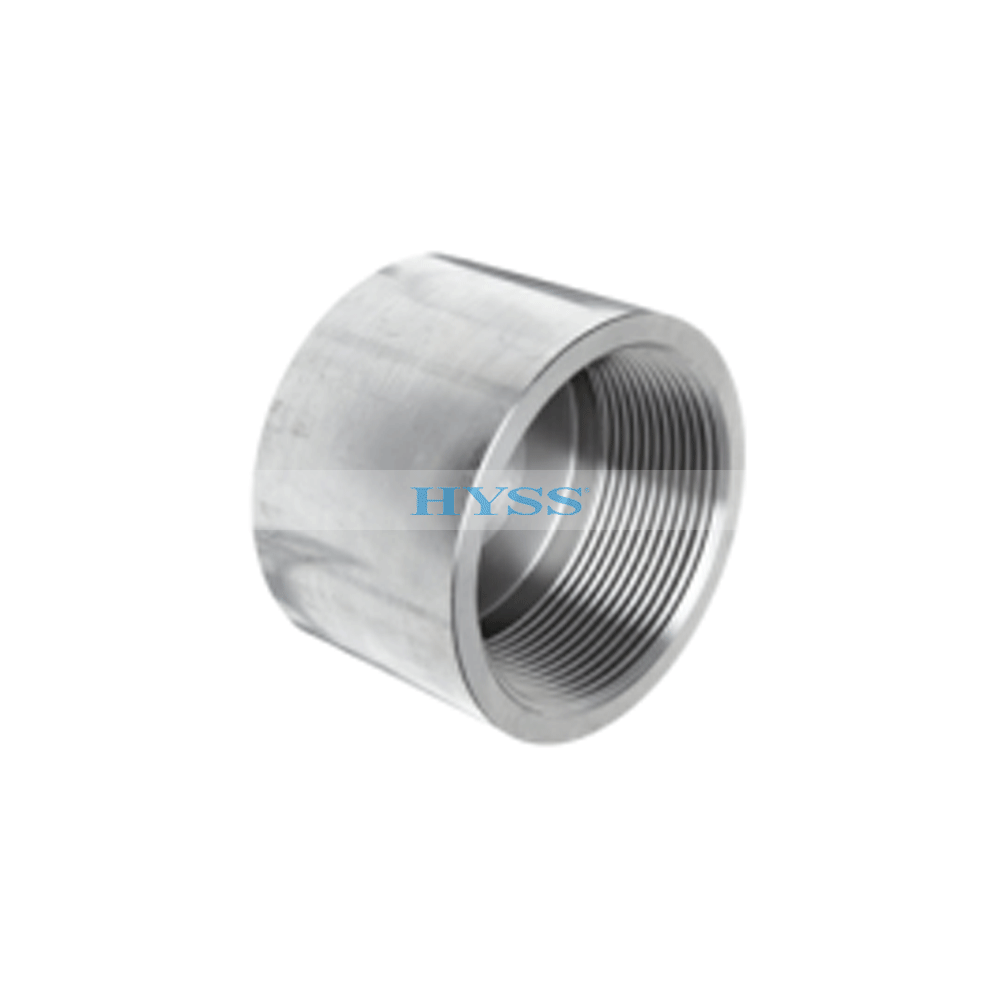

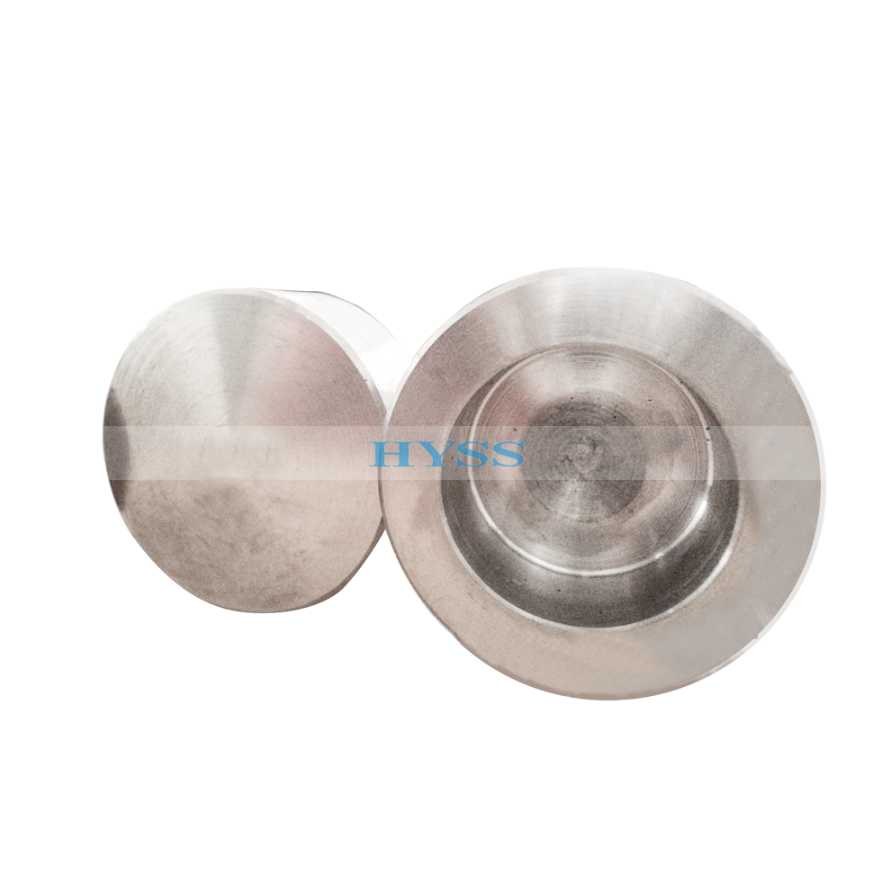

Forged Pipe Cap

Type:

Threaded End: 2000LB, 3000LB, 6000LBS (NPT, BSP)

Socket Welding End: 3000LB, 6000LB, 9000LBS

NPS: 1/8" to 4"

Standard: ASME B16.11

Material Range:

Stainless Steel: ASTM A182 F304/ F304L/ F316/ 316L/ F321/ F347/ F904L/ F20/ F70, etc.

Duplex Steel: ASTM A182 F51/ F53/ F55/ F60, etc.

Carbon Steel: ASTM A105, ASTM A350 LF2/ LF3/ LF6, etc.

Alloy Steel: ASTM A182 F1/ F5/ F9/ F11/ F22/ F91, A694 F42/ F46/ F48/ F50/ F52/ F56/ F60/ F65/ F70, etc.

Special Nickel Alloy Steel: ASTM B564 UNS N08367, N06035, N06200, N06686, N08031, N04400, N10276, N02200, N12160, N06617, N06600, N06025, N06625, N08800, N08811, N08825, N10665, N10675, N10242

Packaging: Wooden Box, Plywood Box

Dimensions as below:

新建文件夹-(4)I MG_0229.png

Nominal Diameter (mm)		End to End (P) (mm)		Outside Diameter (D) (mm)		Minimum Wall Thickness (G) (mm)		Minimum Length of Thread (mm)
Nominal Diameter (mm)		End to End (P) (mm)		Outside Diameter (D) (mm)		Minimum Wall Thickness (G) (mm)		Minimum Length of Thread (mm)
NPS	DN	3000	6000	3000	6000	3000	6000	B	L2
1/8	6	19	-	16	22	4.8	-	6.4	6.7
1/4	8	25	27	19	25	4.8	6.4	8.1	10.2
3/8	10	25	27	22	32	4.8	6.4	9.1	10.4
1/2	15	32	33	28	38	6.4	7.9	10.9	13.6
3/4	20	37	38	35	44	6.4	7.9	12.7	13.9
1	25	41	43	44	57	9.7	11.2	14.7	17.3
1.1/4	32	44	46	57	64	9.7	11.2	17	18
1.1/2	40	44	48	64	76	11.2	12.7	17.8	18.4
2	50	48	51	76	92	12.7	15.7	19	19.2
2.1/2	65	60	64	92	108	15.7	19	23.6	28.9
3	80	65	68	108	127	19	22.4	25.9	30.5
4	100	68	75	140	159	22.4	28.4	27.7	33
Note: Demensions are in millimeters.

Nominal Diameter (mm)		Socket Wall Thickness (C) (mm)
NPS	DN	3000		6000		9000
		Ave.	Min.	Ave.	Min.	Ave.	Min.
1/8	6	3.18	3.18	3.96	3.43	-	-

1/4	8	3.78	3.3	4.6	4.01	-	-

3/8	10	4.01	3.5	5.03	4.37	-	-

1/2	15	4.67	4.09	5.97	5.18	9.35	8.18

3/4	20	4.9	4.27	6.96	6.04	9.78	8.56

1	25	5.69	4.98	7.92	6.93	11.38	9.96

1.1/4	32	6.07	5.28	7.92	6.93	12.14	10.62

1.1/2	40	6.35	5.54	8.92	7.8	12.7	11.12

2	50	6.93	6.04	10.92	9.5	13.84	12.12

2.1/2	65	8.76	7.67	-	-	-	-

3	80	9.52	8.3	-	-	-	-

4	100	10.69	9.35	-	-	-	-

Note: Demensions are in millimeters.

Nominal Diameter (mm)		Socket Bore Diameter(B) (mm)	Minimum Depth of Socket (J) (mm)	Minimum End Wall Thickness (K) (mm)
NPS	DN			3000	6000	9000

1/8	6	11.2	9.5	4.8	6.4	-
		10.8
1/4	8	14.6	9.5	4.8	6.4	-
		14.2
3/8	10	18	9.5	4.8	6.4	-
		17.6
1/2	15	22.2	9.5	6.4	7.9	11.2
		21.8
3/4	20	27.6	12.5	6.4	7.9	12.7
		27.2
1	25	34.3	12.5	9.6	11.2	14.2
		33.9
1.1/4	32	43.1	12.5	9.6	11.2	14.2
		42.7
1.1/2	40	49.2	12.5	11.2	12.7	15.7
		48.8
2	50	61.7	16	12.7	15.7	19
		61.2
2.1/2	65	74.4	16	15.7	19	-
		73.9
3	80	90.3	16	19	22.4	-
		89.8
4	100	115.7	19	22.4	28.4	-
		115.2
Note: Demensions are in millimeters.
